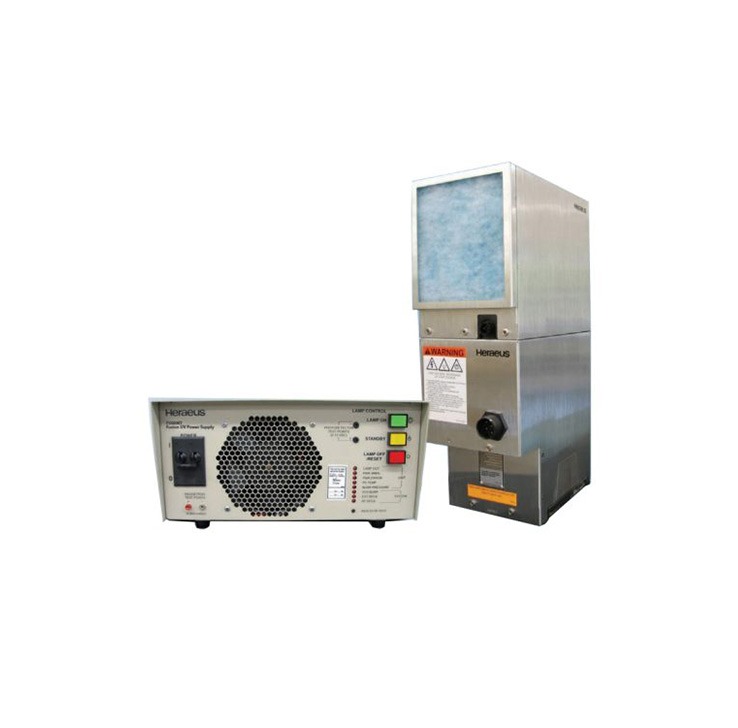

Máy sấy UV F300S and F300SQ

F300S and F300SQ
Lamp Type	Electrodeless UV
Bulb Lenght	15 cm (6-inch)
Extended Curing width	Unlimited cure wi dth by stacking lamps end-to-end
Bulb Type	H, D, V, H+, Q
Start Up Time	20 seconds (cold start), 5 seconds (warm start)
Reflector Geometry	Semi-elliptical
Optimum Focus Distance to Sample	5.3 cm (2.1 inches)
Dichroic Reflectors	Optional
Shutter	Optional Mechanical
Power Class	120 W/cm (300 W/inch)
Power Level	Fixed or Quick Restart (optional)2
External Control	Standard
Cooling Blower	Integral or Remote
Air Flow @ Irradiator Inlet	2.8 m3/min.; 100 scfm
Lamp Footprint (WxL)	208 x 168 mm (8.2 x 6.6 inches)
Compliance	CE, TÜV
AIMS Cloud Enabled
Upgrade/Retrofit Capable
