Máy sấy UV LightHammer® 10 Mark II

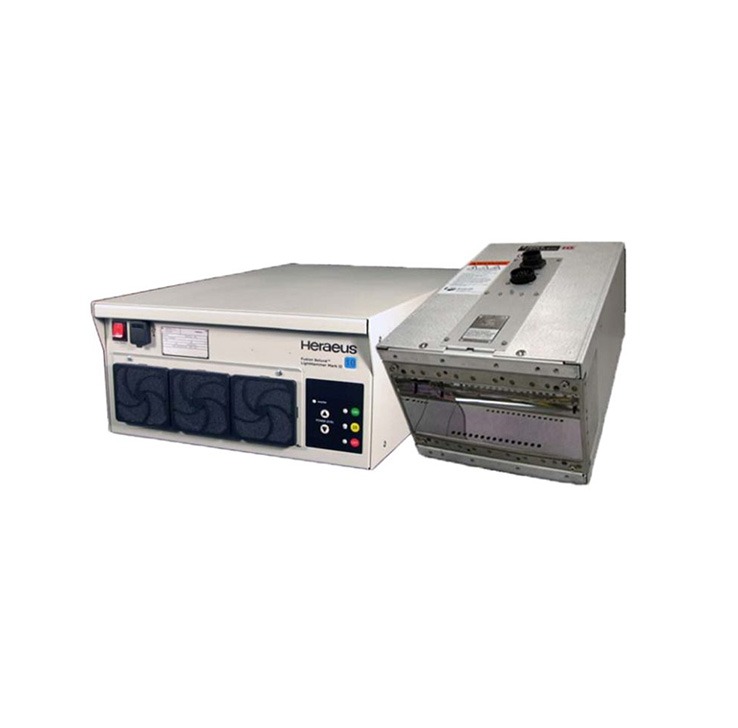

LightHammer® 10 Mark II
Lamp Type	Electrodeless UV
Bulb Lenght	25 cm (10-inch)
Extended Curing width	Unlimited cure wi dth by stacking lamps end-to-end
Bulb Type	H, D, V, H+, Q, M
Start Up Time	15 seconds (cold start), instantaneous (warm start)1
Reflector Geometry	Semi-elliptical
Optimum Focus Distance to Sample	5.3 cm (2.1 inches)
Dichroic Reflectors	Optional
Shutter	Electronic Shutter2 Optional Mechanical
Power Class	240 W/cm (600 W/inch)
Power Level	Variable (35–100%) Quick Restart2
External Control	Standard Master/Slave Optional DeviceNet™, Profinet® Profibus®, Ethernet/IP™
Cooling Blower	Integral or Remote
Air Flow @ Irradiator Inlet	8.9 m3/min.; 315 scfm
Lamp Footprint (WxL)	206 x 267 mm (8.1 x 10.5 inches)
Compliance	CE, TÜV
AIMS Cloud Enabled	Optional
Upgrade/Retrofit Capable	Available

Máy sấy UV Mark II
