UVC 5 UV Curing Conveyor System

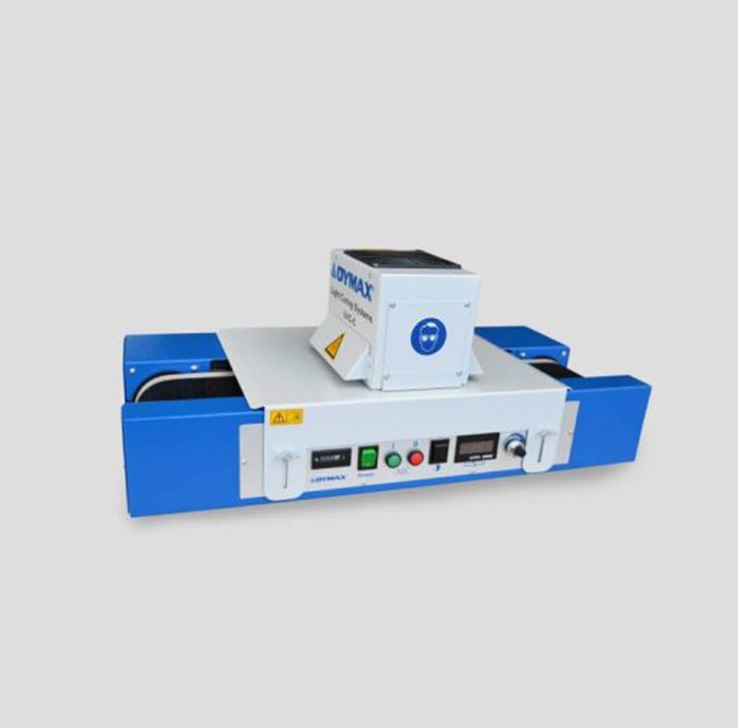

Dymax UVC-5 Compact Light-Curing Conveyor System with 120-mm Wide Belt

CE Marked – Available in Europe Only

The Dymax UVC-5 Conveyor is designed for curing UV light-curable adhesives, coatings, and inks in a variety of different industries. This conveyor system is ideal for curing smaller parts and can cure materials applied to a variety of substrates including paper, plastic, metal, glass, laminated materials, printed circuit boards, and many others.

The UVC-5 Conveyor is equipped with a 120-mm wide PTFE non-stick coated belt and one UV lamp. The distance between the lamp and the belt can be manually adjusted (between 15-60 mm) as can the belt speed (2-26 m/min). This enables the operator to tailor curing conditions to specific application requirements. The conveyor also features a counter to track hours of operation, an electric control unit located in the transportation device and an air-cooled casing with an aluminum reflector for the bulb.

Máy sấy UV băng tải UVC-5

Property Specifications
Lowest UVA Intensity¹ 990 mW/cm²
UVA Dose (@ 1 m/min) 1,800 mJ/cm²
Lamp Type Focused Beam
Number of Lamps One
Illuminated Area (one lamp) Length: 100 mm; width:120 mm
Focal Length 40 mm
Belt Material 5 mm x 5 mm mesh PTFE non-stick coated fiberglass belt
Belt Width 120 mm
Belt Speeds Adjustable 2 to 26 m/minute
Electrical Requirements 230 VAC, 50 Hz, 5.9A (single phase)
Overall Dimensions (L x W x H) 700 mm x 369 mm x 299 mm
Load and Unload Length 90 mm
Vertical Clearance Adjustable from 15 to 60 mm
Net Weight 20 Kg
Lead Time (not including shipping) 2-3 Weeks
Bulb Typical life – 1,000 hours; Warranty – 500 hours
Note ¹ Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL™ 50 radiometer with a new bulb at a distance of 60 mm.

Features

  • Available in Europe Only – CE Marked
  • Lowest Intensity 990 mW/cm²
  • Controlled and consistent cure times
  • High power lamp (Fe 820 or Hg 850 W)
  • Adjustable lamp-to-belt distance (15 to 60 mm)
  • Dependable, heavy-duty conveyor design with fully shielded lamp enclosures
  • 120-mm wide non-stick coating belt with adjustable speed (2-26 m/min. range)
  • Two bulb options, Fe or Hg
