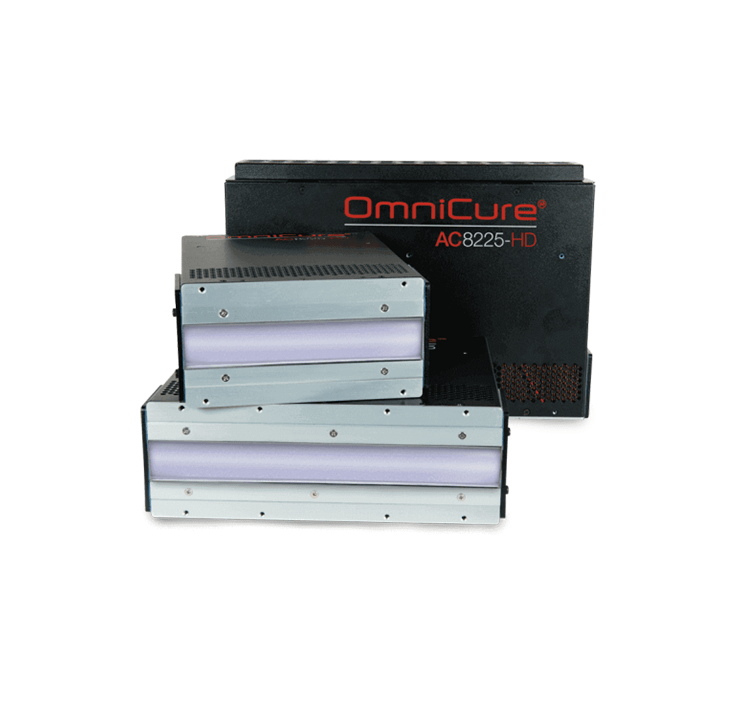

OmniCure AC8-HD LED High-Dose, Large-Area UV Curing Systems

OmniCure® AC8150P-HD, AC8225P-HD and AC8300P-HD air-cooled, LED UV Curing Systems deliver an outstandingly high optical dose, bringing UV LED curing to the next level. The AC8-HD Series of products are designed with a patented technology that enables unbeatable uniformity of output across the irradiation area. Available in 385 nm, 395 nm, and 405 nm wavelengths, the AC8-HD delivers over 15 W/cm2 peak irradiance and double the dose of the standard AC8 Series of products making them ideal for large-area curing applications that demand high dosage.



AC8150P-HD

AC8225P-HD

AC8300P-HD

LED Peak Wavelengths

385 nm +/-5 nm, 395 nm +/- 5 nm, 405 nm +/- 5 nm

Active Optical Area

150 x 30 mm

225 x 30 mm

300 x 30 mm

Typical Power Consumption*

1500 W

2250 W

3000 W

Typical Peak Irradiance (W/cm2)

Working Distance

1 mm

15.1

15.1

15.1

10 mm

12.2

12.2

12.2

20 mm

8.7

8.7

8.7

30 mm

6.7

6.7

6.7

40 mm

5.0

5.0

5.0

50 mm

4.0

4.0

4.0

Optical Power*

650 W

975 W

1300 W

Longitudinal Uniformity*

Better than +/-10%

Operating Voltage

48 V DC +/- 2 V

Dimensions (L x W x H)

159 x 80 x 218 mm

235 x 80 x 218 mm

311 x 80 x 218 mm

Weight (kg)

2.8

3.7

5.2

Cooling

Air

Life Expectancy

> 20,000 hours

Automation

Integrated PLC controls for UV intensity and system alarms

LED Warranty

2 years or 10,000 service hours
