UVCS 2 0 12 Wide UV Curing Conveyors with Fusion F300 Lamps
Available Globally, Except Europe
Dymax 12 inch wide UV curing oven offers consistent, fast, and safe UV curing. These conveyors are designed for UV curing adhesives, coatings, and inks and can be outfitted with either a standard metal halide (longwave “D”) or mercury (shortwave “H”) bulbs.
| Property | Specifications |
|---|---|
| Maximum UVA Intensity/(320-395 nm)¹ | 2,500 mW/cm² |
| Maximum UVA Energy/(320-395 nm) @ 5 fpm | 2.0 J/cm² |
| Line Speed | 1-27 fpm or 25-115 fpm |

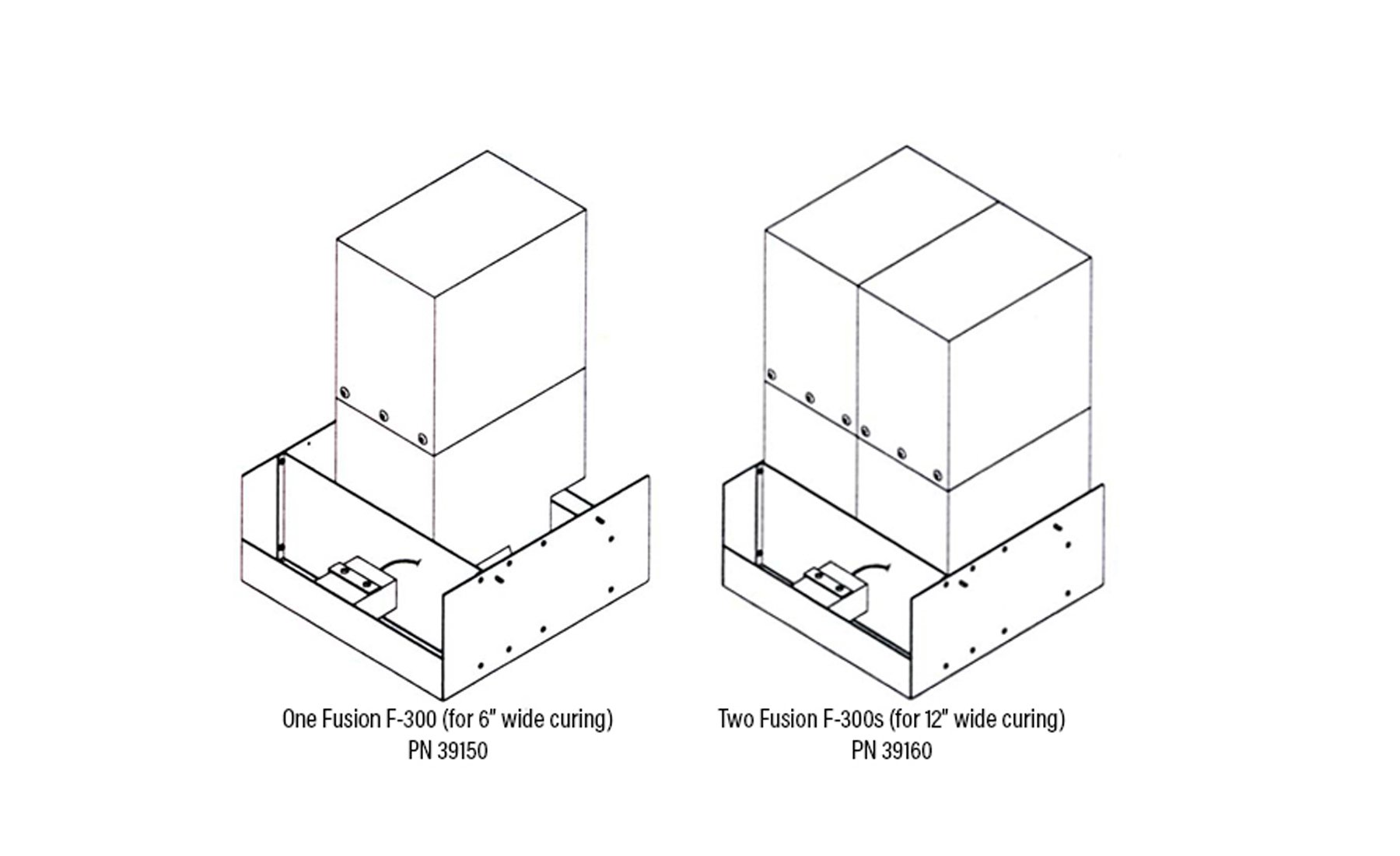

| Illuminated Width | 6 in (one Fusion F300) or 12 in (two Fusion F300s) |
| Voltage | 220/230V (50 or 60 Hz) |
| Vertical Clearance | 4 in (Standard) | 6 in (with 2 in riser, PN 39218) | 10 in (with 6 in riser, PN 39280) |
| Overall Dimensions | 50.5 in L x 29.8 in W x 16.4 in H (128 cm x 76 cm x 42 cm) |
| ¹ | Intensity readings vary widely depending on the make and model of the radiometer. These intensities were measured with the ACCU-CAL™ 50 radiometer |
UVCS 2 0 12 Wide UV Curing Conveyors with Fusion F300 Lamps
- Available globally (except Europe)
- Consistent UV curing process
- Complete UV shielding
- Adjustable lamp to belt distance
- 4 in, 6 in, or 10 in vertical clearance
- Integral cooling and vacuum hold-down
- 1 to 27 fpm or 25 to 115 fpm
- Bulb life: 5,000 hours
- <2,500 mW/cm²
- Bench-top conveyor (cart optional)
