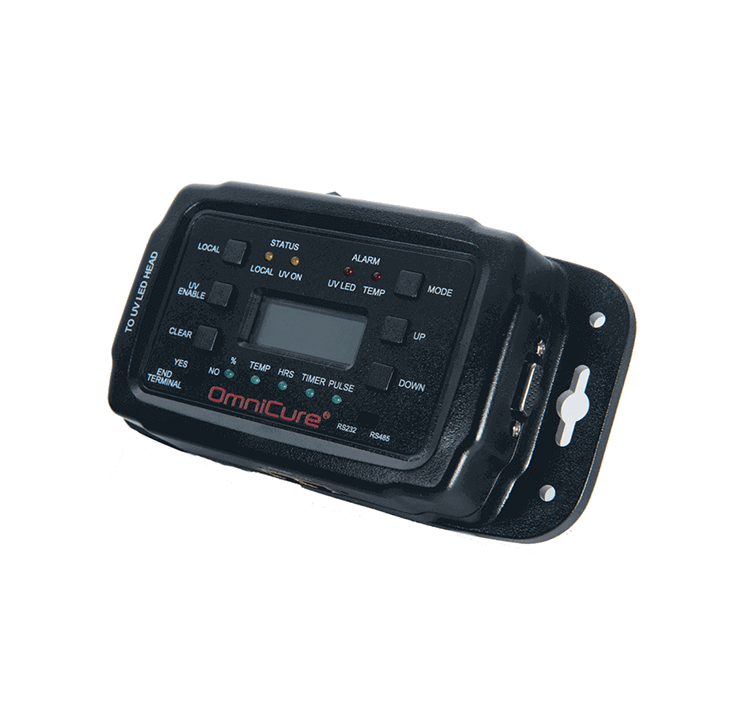

OmniCure PLC2000 Programmable Controller
OmniCure® PLC2000 programmable controller is designed to complement the OmniCure AC Series LED UV curing systems. When connected to an AC Series LED UV head, this multipurpose, external controller device allows you to intelligently manage, monitor and control an LED system. With unparalleled control of the LED UV systems, the PLC2000 can be used to dynamically adjust the output intensity, exposure time, and on/off capabilities while providing system information and error monitoring.
|
PLC2000 |
|
|
Outer Dimensions (L x W x H) |
180 mm (7.07”) x 91 mm (3.57”) x 41 mm (1.63”) |
|
Connectivity |
HD15 for connection to UV LED head and for customer PLC control port RJ11 – S485 daisy-chain in and out |
|
Controls |
Local: LED On/Off, Intensity, exposure timer, pulse mode operation Remote: Function programmability via PLC commands |
|
Alarms |
Temperature, drive current continuity |
|
Door Lock |
Integrated safety feature to prevent accidental UV exposure |
