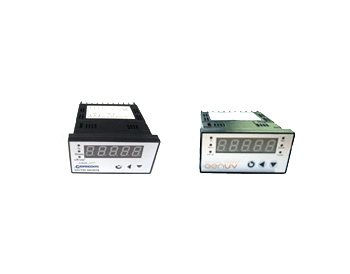

MG05 (General)

Features
  – Fixing method : Panel Insertion
  – Power : Display : AC 85 ~ 265V (50/60Hz)
  – Display
– Absolute Optical Power : Max. 20 mW/cm2
– Relative Power (unit : %)
– Accumulative Time (unit : Hrs)
  – Output
– 1 Relay (NO/NC)
– 1-5 V Voltage (Depends on Relative Power)
– 4-20 mA Current (Depends on Relative Power)
– Max power (5.1 version)
– RS485 Communication (5.1 version)
– Dose Display(mJ/cm²) (5.1 version)
Specifications
  – Size : 96 mm X 48 mm X 112 mm
  – Operating Temperature
– Display : 0 ~ 50 C
– UV Sensor Probe : -30 ~ 85 C
  – Detection Range
– UVV : 230 ~ 395 nm
– UVA : 220 ~ 370 nm
– UVB : 220 ~ 320 nm
– UVC : 220 ~ 280 nm
Applications
  – UV Purification (Water, Air)
  – UV Curing
  – UV Lamp/LED monitoring
Instruction
Image Feature Type Application by UV Probe Part Number Display Spec-sheet Manual
 0203 4 5.0 Ver.
General
Air/Curing LA2 GUVx-T1xGS5-LA2 Dimensions (mm)
97 x 50 x 112mm3
btn download 2 btn download 2
LA5 GUVx-T1xGS5-LA5 btn download 2
LA6 GUVx-T1xGS5-LA6 btn download 2
High Temp. LO1 GUVx-T1xGS5-3LO1 btn download 2
Outdoor UV
Index
H3 GUVx-S1xS5-3LWH3 btn download 2
Water
treatment
LW5 GUVx-T1xGS5-3LW5 Panel Cut Out
92 x 45 mm2 (-0,+0.6mm)
btn download 2
LW9 GUVx-T1xGS5-5LW9 btn download 2
LW10 GUVx-T1xGS5-3LW10 btn download 2
LW11 GUVC-T11GS5-4LW11 btn download 2
0203 4 2 5.1 Ver.
Max power, RS485,
Dose display
Air/Curing LA6 GUVx-T1xGS5.1-LA6 btn download 2 btn download 2
